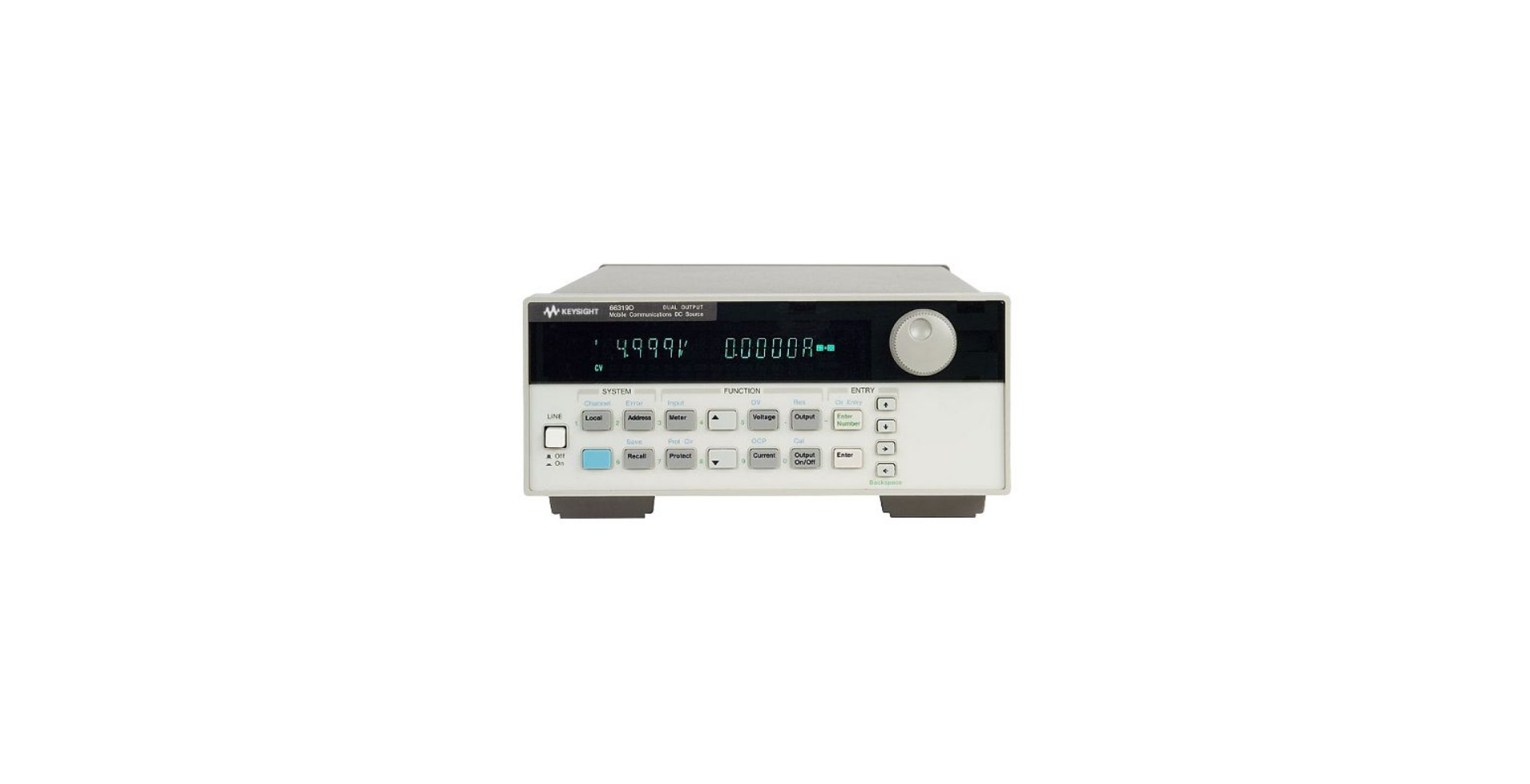

66319B Dual-path DC power supply for mobile communication

Output Ratings • Voltage: 0 to 15 V • Current: 0 to 3 A • Current peak for up to 7 ms: 5 A Programming Accuracy at 25°C ±5°C • Voltage: 10 mV • + Current: 1.33 mA DC Readback Accuracy • Voltage: 0.03% + 5 mV • Current (-3 A to + 5 A): 0.2% + 0.5 mA • Current (-1 A to + 1 A): 0.1% + 0.2 mA • Current (-20 mA to + 20 mA): 0.1% + 2.5 µA Transient Response • 40 mV voltage drop, transient response time <20 µs
