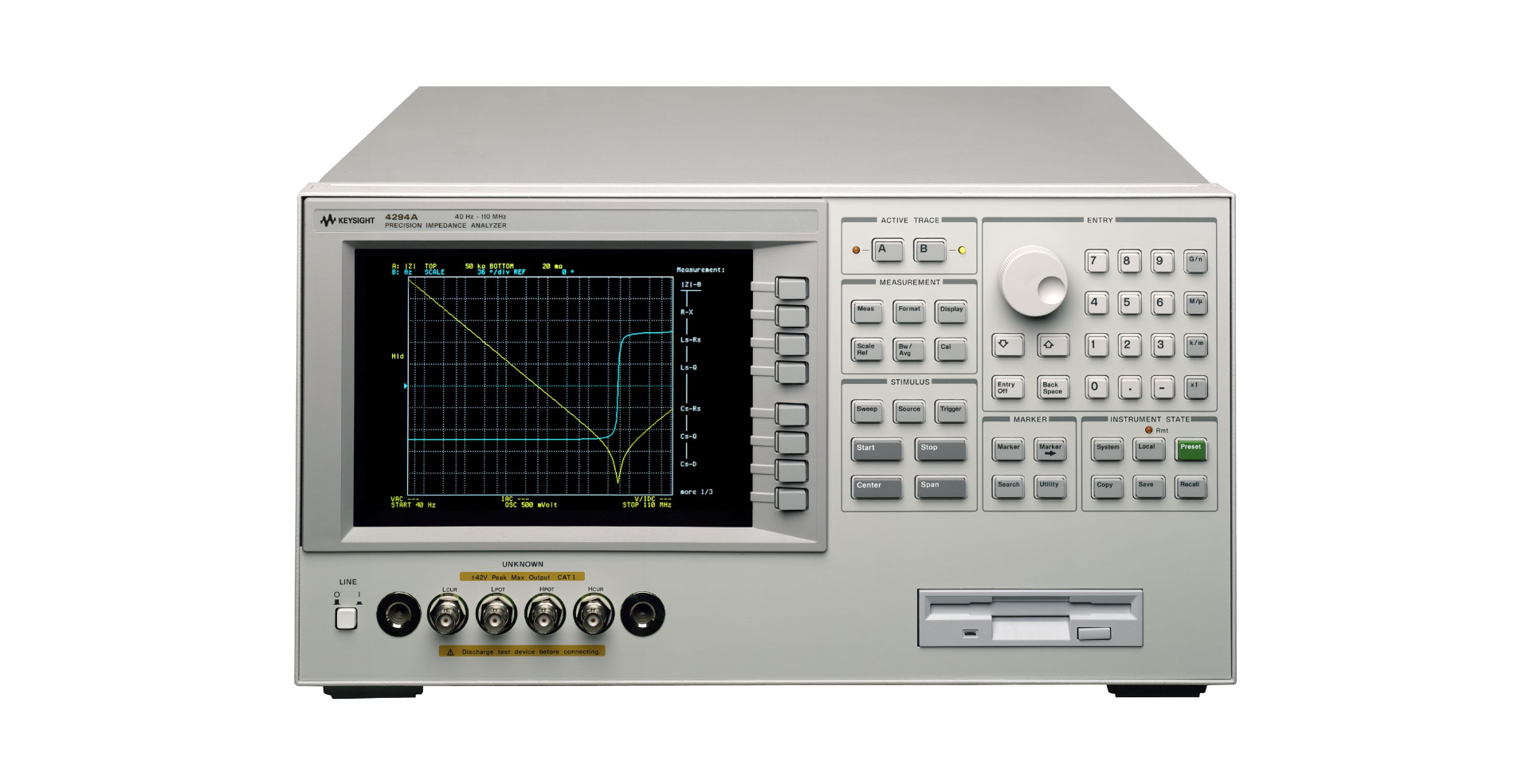

Key Specifications Frequency: 40 Hz to 110 MHz Basic accuracy: +/- 0.08 % The 4294A precision impedance analyzer is an integrated solution for efficient impedance measurement and analysis of components and circuits. The 4294A covers a broader test-frequency range (40 Hz to 110 MHz) with Basic impedance accuracy:+/-0.08 %. Excellent High Q/Low D accuracy enables analysis of low-loss components. The wide signal-level ranges enable device evaluation under actual operating conditions. The test signal level range is 5m V to 1 Vrms or 200 uA to 20m Arms, and the DC bias range is 0 V to +/-40 V or 0m A to +/-100m A. Advanced calibration and error compensation functions eliminate measurement error factors when performing measurements on in-fixture devices. The 4294A is a powerful tool for design, qualification and quality control, and production testing of electronic components. Circuit designers and developers can also benefit from the performance/functionality offered.

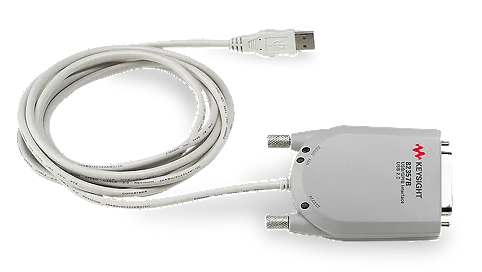

Features: Interface conversion: It can turn any computer with a USB port into a fully functional GPIB controller, facilitating users to implement GPIB control functions on computers without PCI board slots. Compatibility: Compliant with USB 2.0 standard, compatible with IEEE-488.1 and IEEE-488.2 standards. Its driver library is fully compatible with Keithley's traditional GPIB command set and National Instruments (NI) command set, and also supports industry-standard VISA library. Data transmission: The IEEE data transmission rate through the USB port is up to 1.5MB/s. Plug-and-play: Supports plug-and-play, no external power supply required. It has a built-in 2-meter USB cable, with a current of 500mA at 5VDC. Supported operating systems and development environments: Provides device drivers for Windows 2000, XP, and Vista operating systems. It supports programming environments such as Microsoft Visual Basic, Visual C++, Visual Borland Delphi, LabVIEW 7.0 and above (VISA and IEEE-488.2), and LabWindows/CVI 7.0 and above . Physical characteristics: Dimensions are 81.7 mm × 66.1 mm × 27.8 mm (3.2 inches × 2.6 inches × 1.1 inches), with light weight, easy to carry and use. Application fields: Suitable for automatic test equipment in laboratory and industrial fields. It can be used as a talker/listener device or system controller, and can control up to 14 GPIB instruments or other devices (such as Keithley's digital multimeters, source meters, switch mainframes and cards) at a distance of up to 20 meters.

Master the Essentials in Signal Characterization with the Leading Low-cost Tool in Signal Analysis Perform cost-effective stimulus response measurements with optional built-in tracking generator Add crucial functionality with X-Series measurement applications for analog demodulation, noise figure, phase noise, vector signal analysis, EMI precompliance, and more Enhance theory with practical skills that enable deeper insights: use with a training kit in your RF & microwave education lab What's included: Spectrum analyzer measurement application Single-core, high-performance processor, 4 GB RAM, removable solid-state drive Frequency reference 10 MHz analysis bandwidth Enhanced phase noise

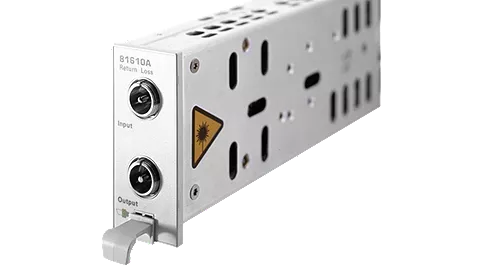

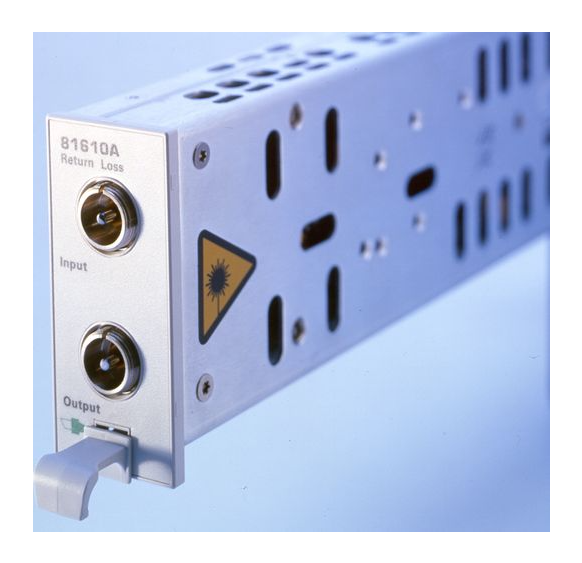

Overview and Features • Return loss dynamic range > 70 dB • Return loss uncertainty can be reduced to ±0.25 dB when using a broadband signal source • Very wide operating wavelength range: 1250 nm to 1640 nm • Built-in power monitor • Step-by-step guided wizard program built into the 8163B main unit

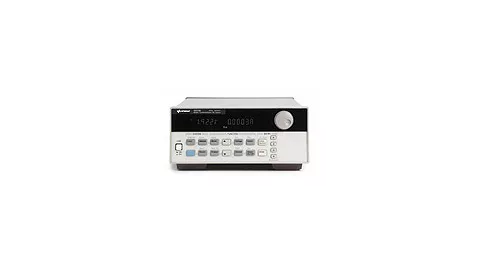

Output Ratings • Voltage: 0 to 15 V • Current: 0 to 3 A • Current peak for up to 7 ms: 5 A Programming Accuracy at 25°C ±5°C • Voltage: 10 mV • + Current: 1.33 mA DC Readback Accuracy • Voltage: 0.03% + 5 mV • Current (-3 A to + 5 A): 0.2% + 0.5 mA • Current (-1 A to + 1 A): 0.1% + 0.2 mA • Current (-20 mA to + 20 mA): 0.1% + 2.5 µA Transient Response • 40 mV voltage drop, transient response time <20 µs
